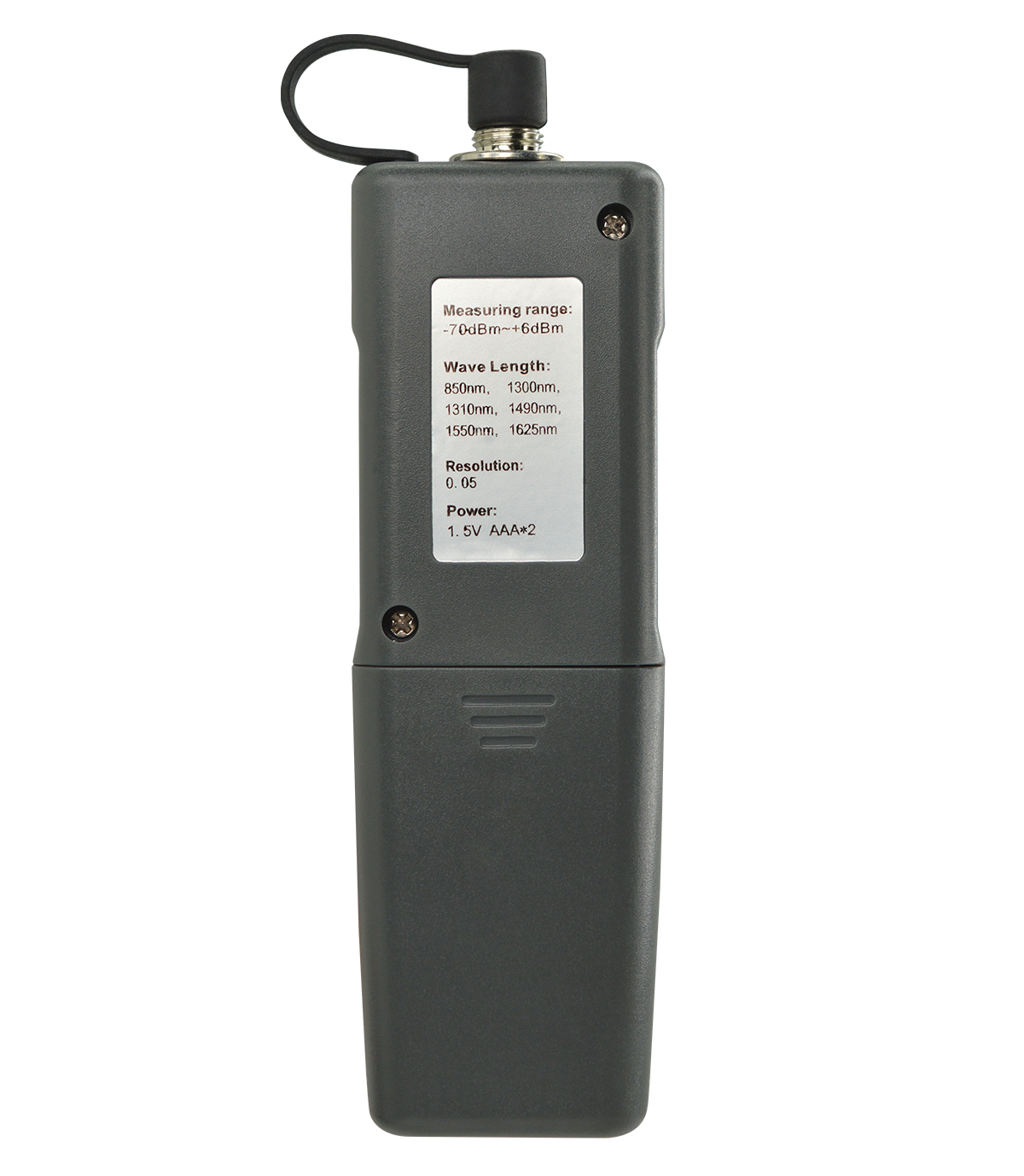

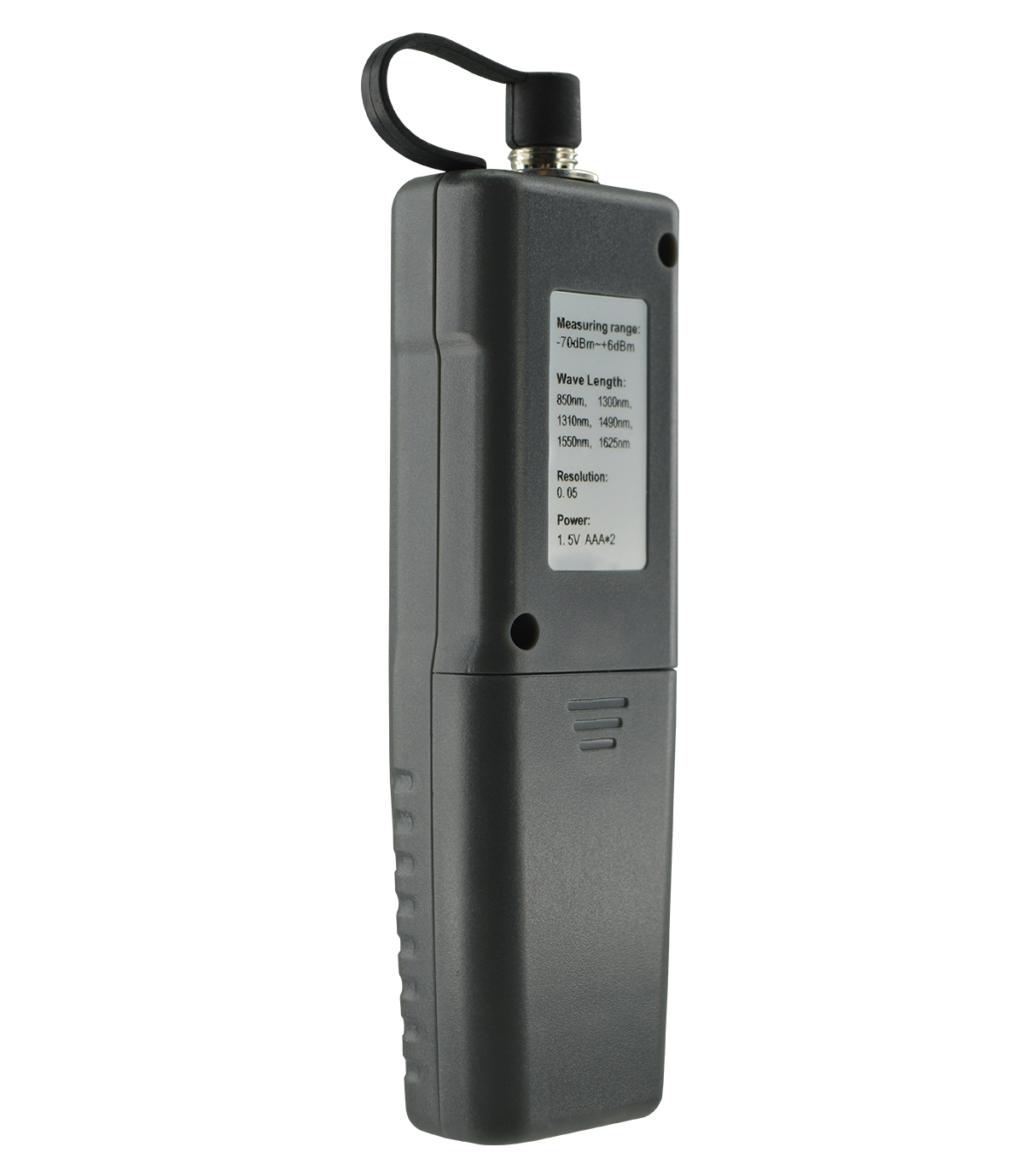

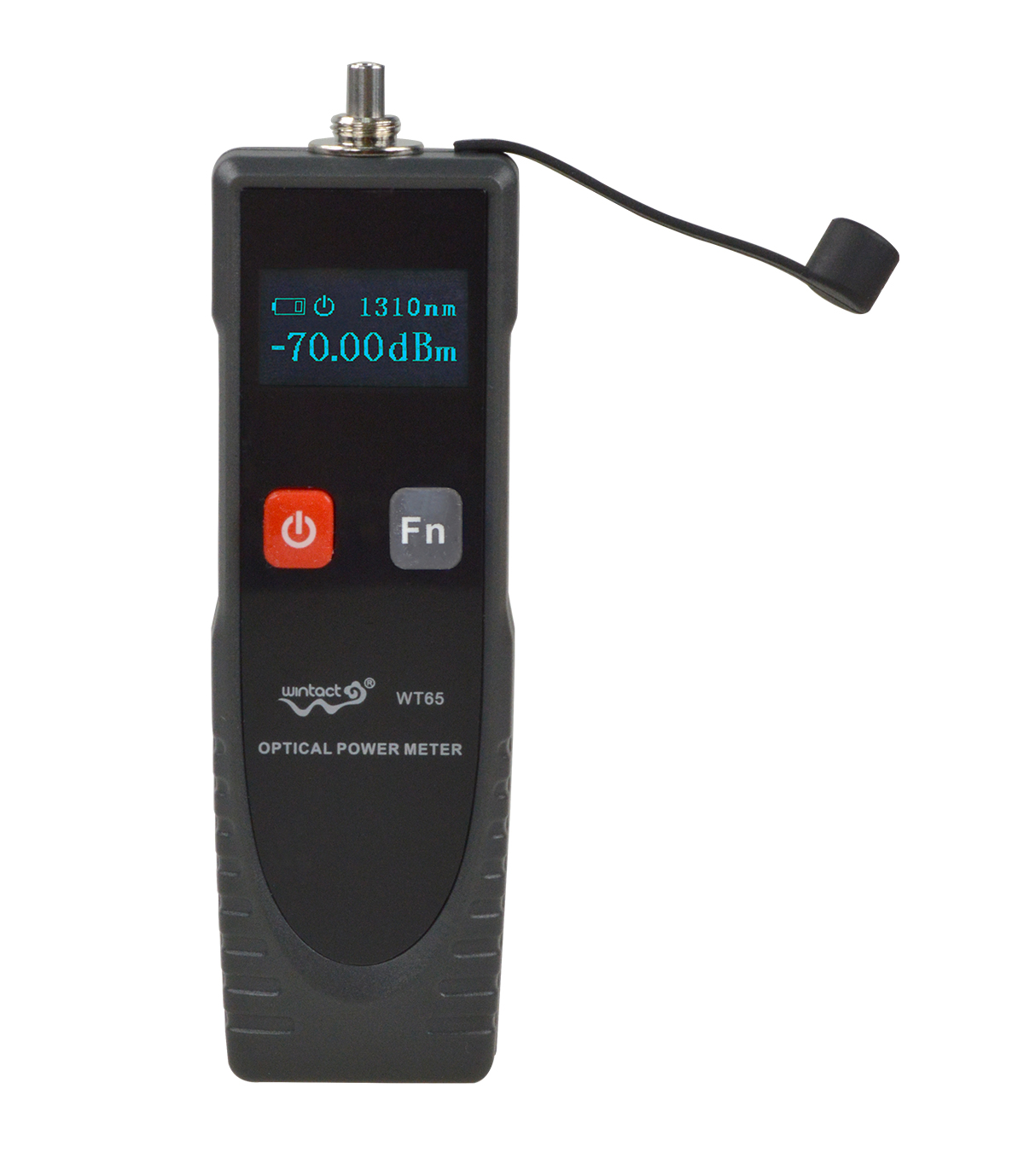

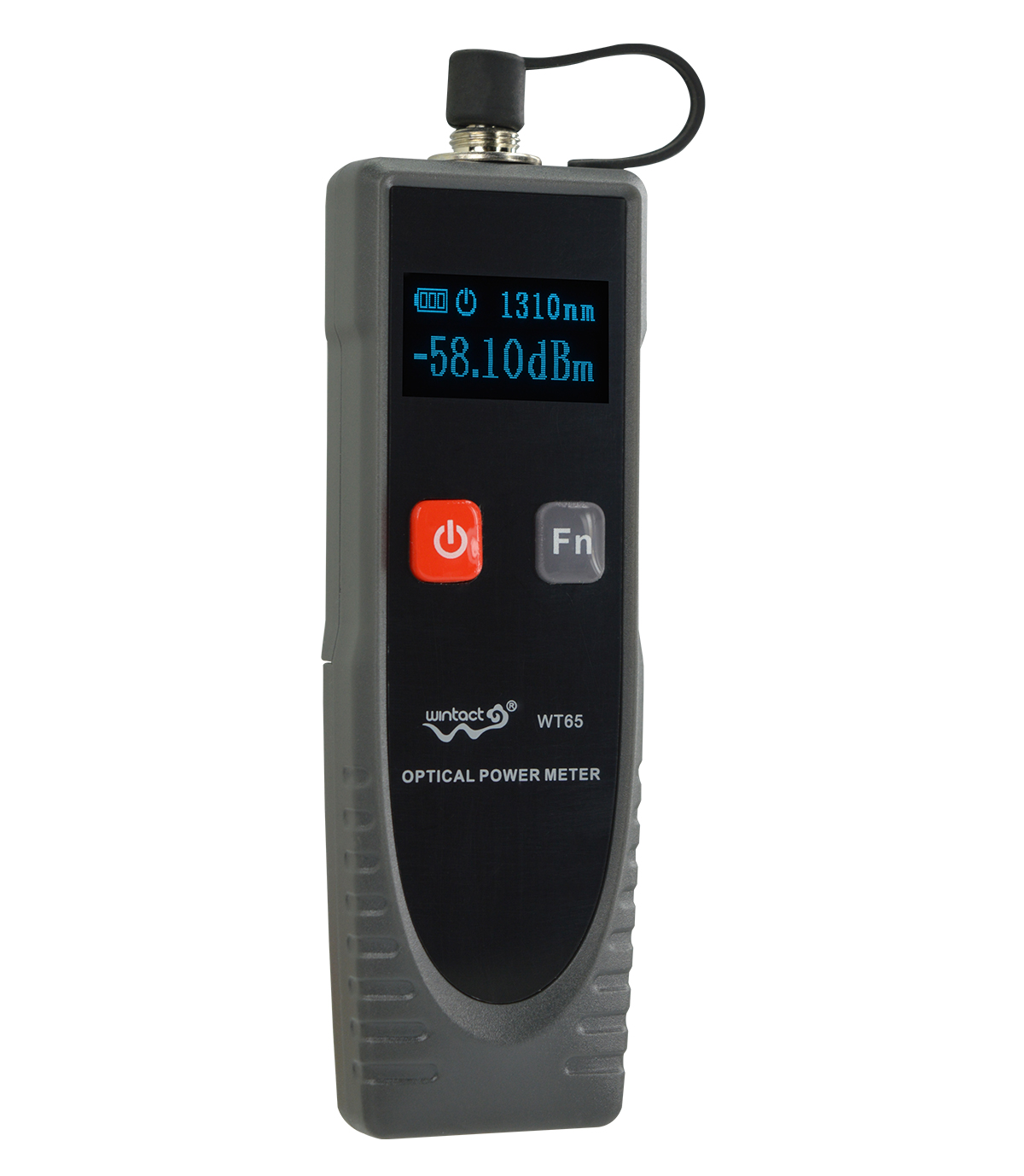

• Optical Power Meter possesses the following features:

  1.6 optic wave length for selection --- 850nm/

  1300nm/1310nm/1490nm/1550nm/1625nm

  2.Universal optic interface design

  3.Reading unit switching between absolute power

  and relative power

  4.Battery volume display

  5.Auto power off (optional)

  6.Light, mini size and low power consumption.

• Measuring range	-70dBm ~ +6dBm
  Wave Length	850nm，1300nm，1310nm， 1490nm，1550nm，1625nm
  Resolution	0.05
  Accuracy	≥-48dBm，±2dBm ≤-48dBm，±3.5dBm
  Operation environment ≥-48dBm	Temperature：0~40℃（32℉~104℉） Humidity：5~95%
  Operation environment ≤-48dBm	Temperature：0~32℃（32℉~89.6℉） Humidity：5~80%
  Storage environment	Temperature：0~40℃（32℉~104℉） Humidity：5~95%
  Auto power off time	10 minutes
  Dimension	34x114x17.5MM
  Power	1.5V AAA*2
  Weight	59.22g Including Battery



• Please refer to the manual for details
• Blister packaging*1
  Host*1
  1.5V battery*2
  Instructions*1

•
•
