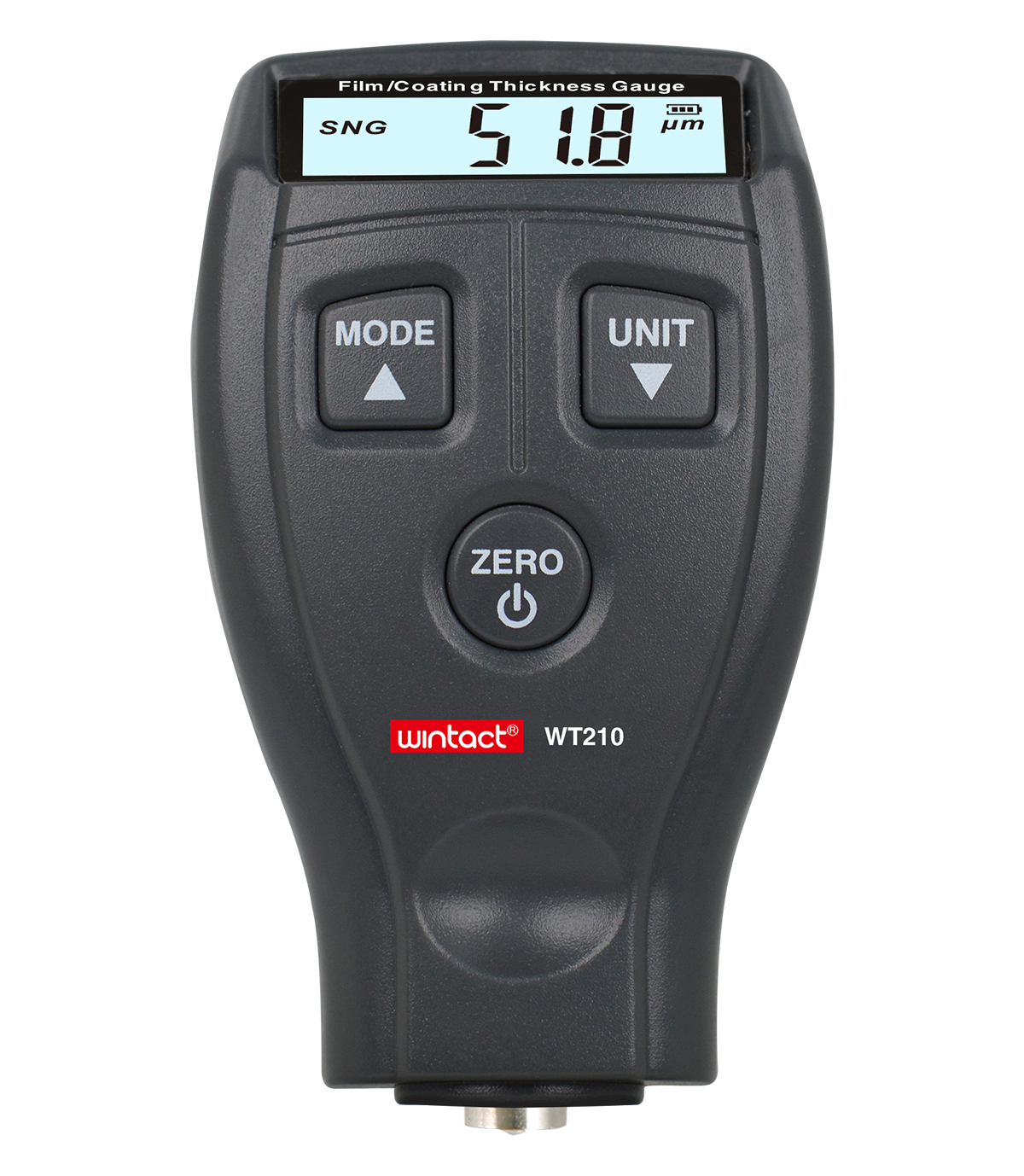

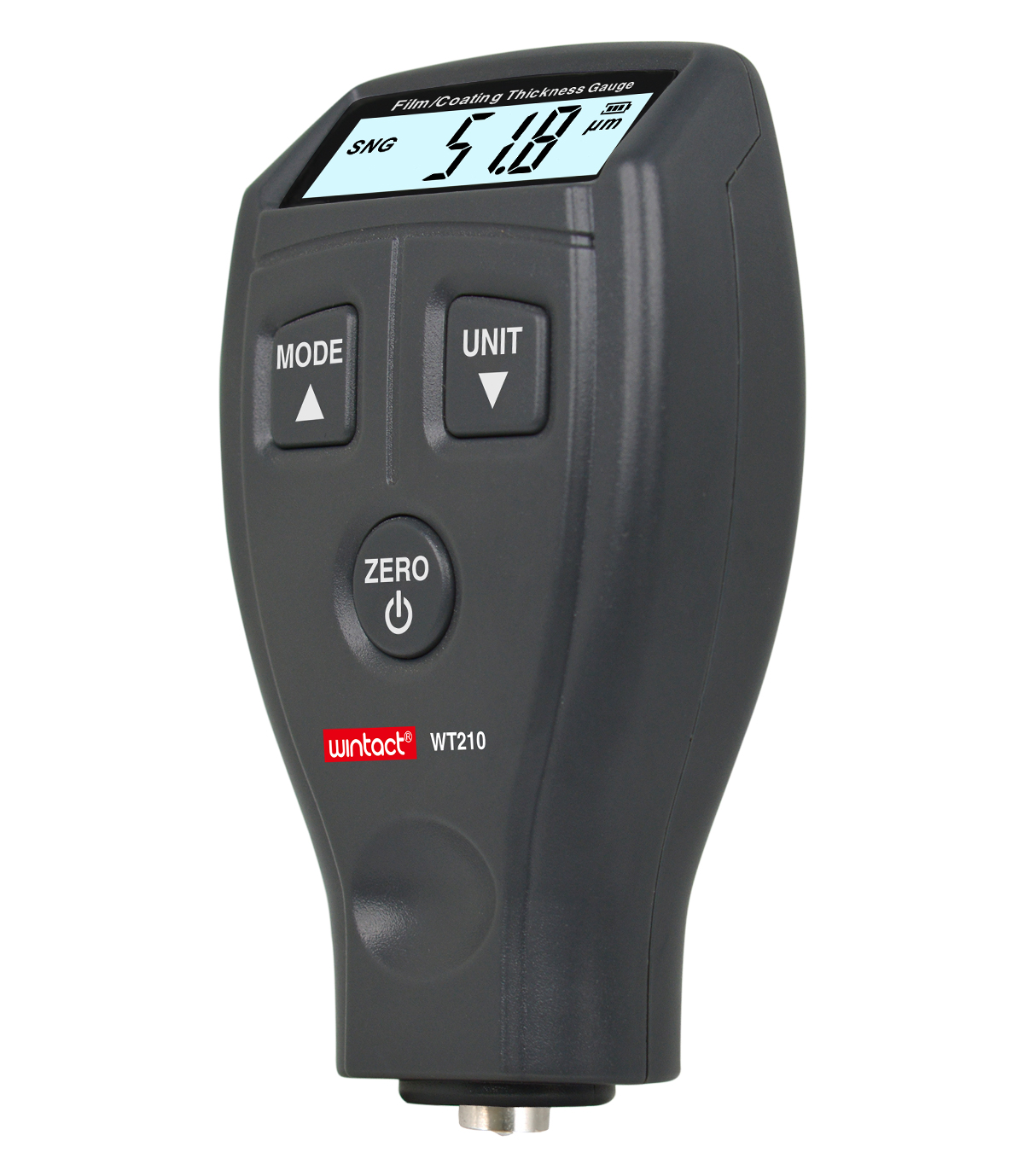

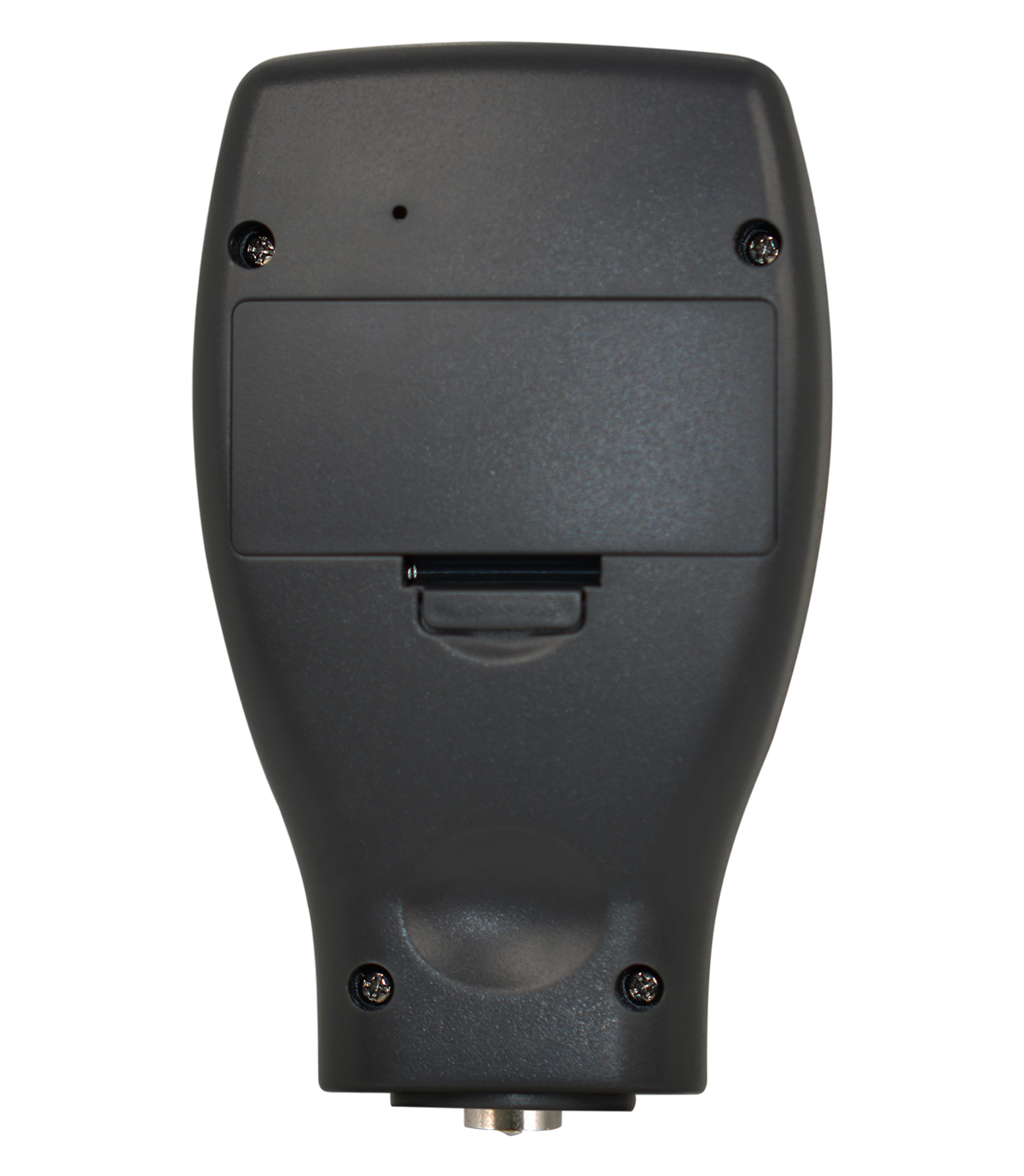

• Film/Coating Thickness Gauge possesses the following features:

  1. Thickness measurement of non-magnetic surface
  coatings on magnetic metal substrates
  2. Single measurement, continuous measurement
  and differential measurement available
  3. Zero-point calibration, 2-point calibration and basic
  calibration available
  4. Metric and imperial units of measurement optional
  5. LCD backlight
  6. Automatic shutdown

• Measurement ranges	0~1800μm/0~70.9mil
  Resolution	0.1 μm/1μm/0.1mil
  Measurement error	±（3%H+1μm）
  Min. diameter of substrate	φ12mm
  Min. thickness of substrate	0.5mm
  Min. curvature radius of convex substrate	2mm
  Min. curvature radius of concave substrate	11mm
  Power supply	2*1.5V AAA batteries
  Operating temperature range	0 ~ 40℃
  Operating humidity range	10~95%RH
  Overall dimensions	61.98*30.57*107.99mm
  Weight	63.98g( excluding of batteries)



• Please refer to the manual for details
•
•
