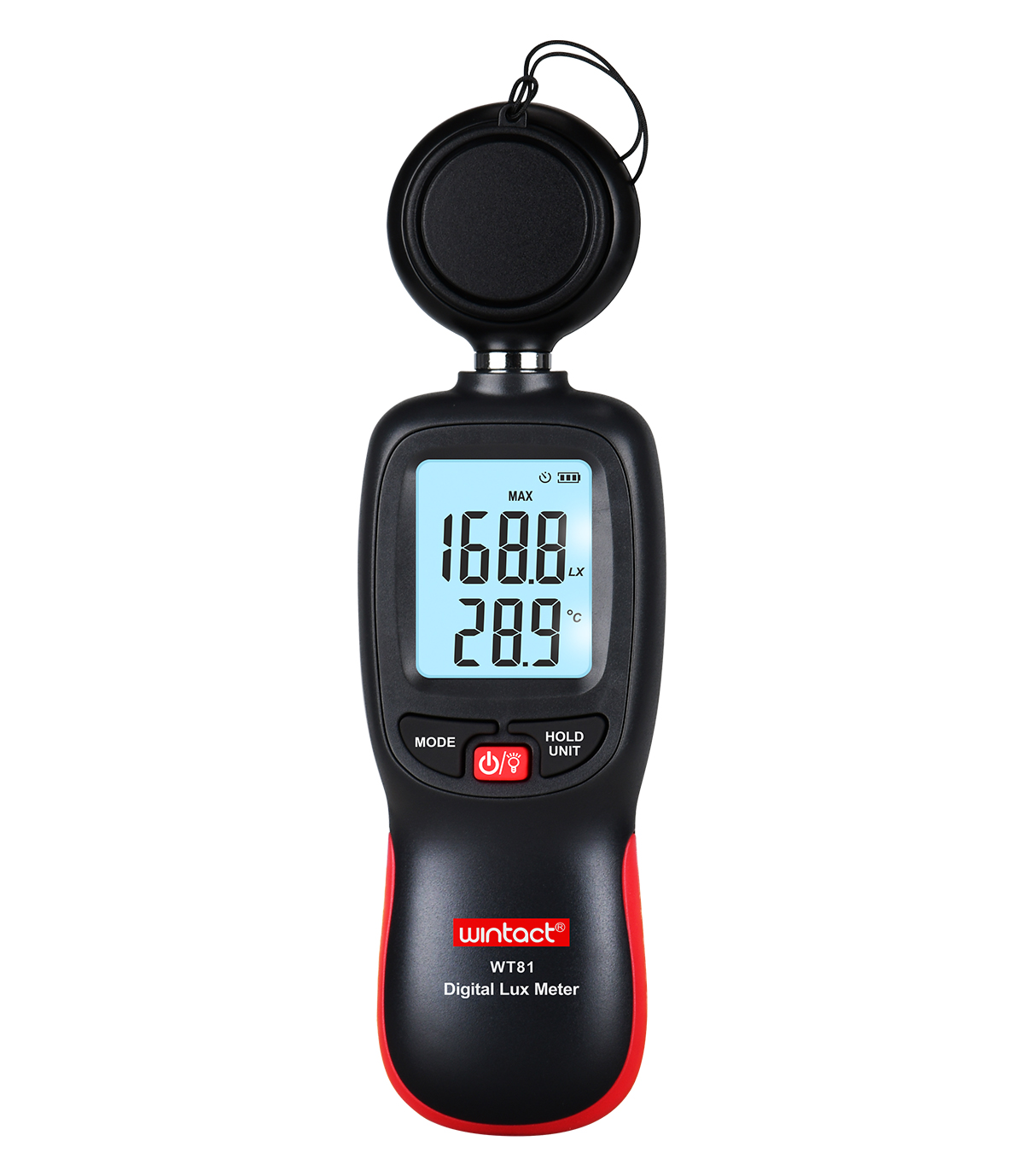

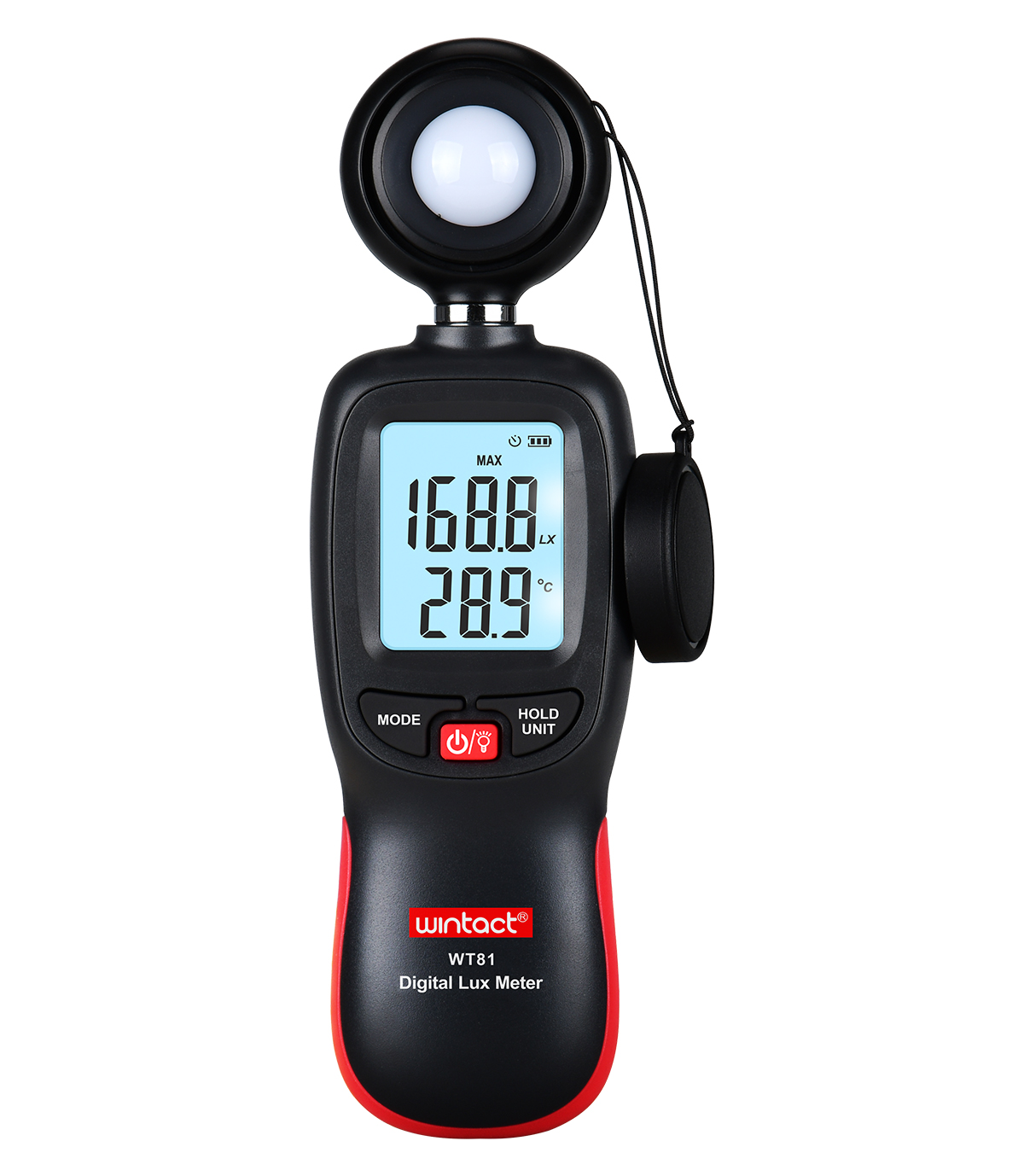

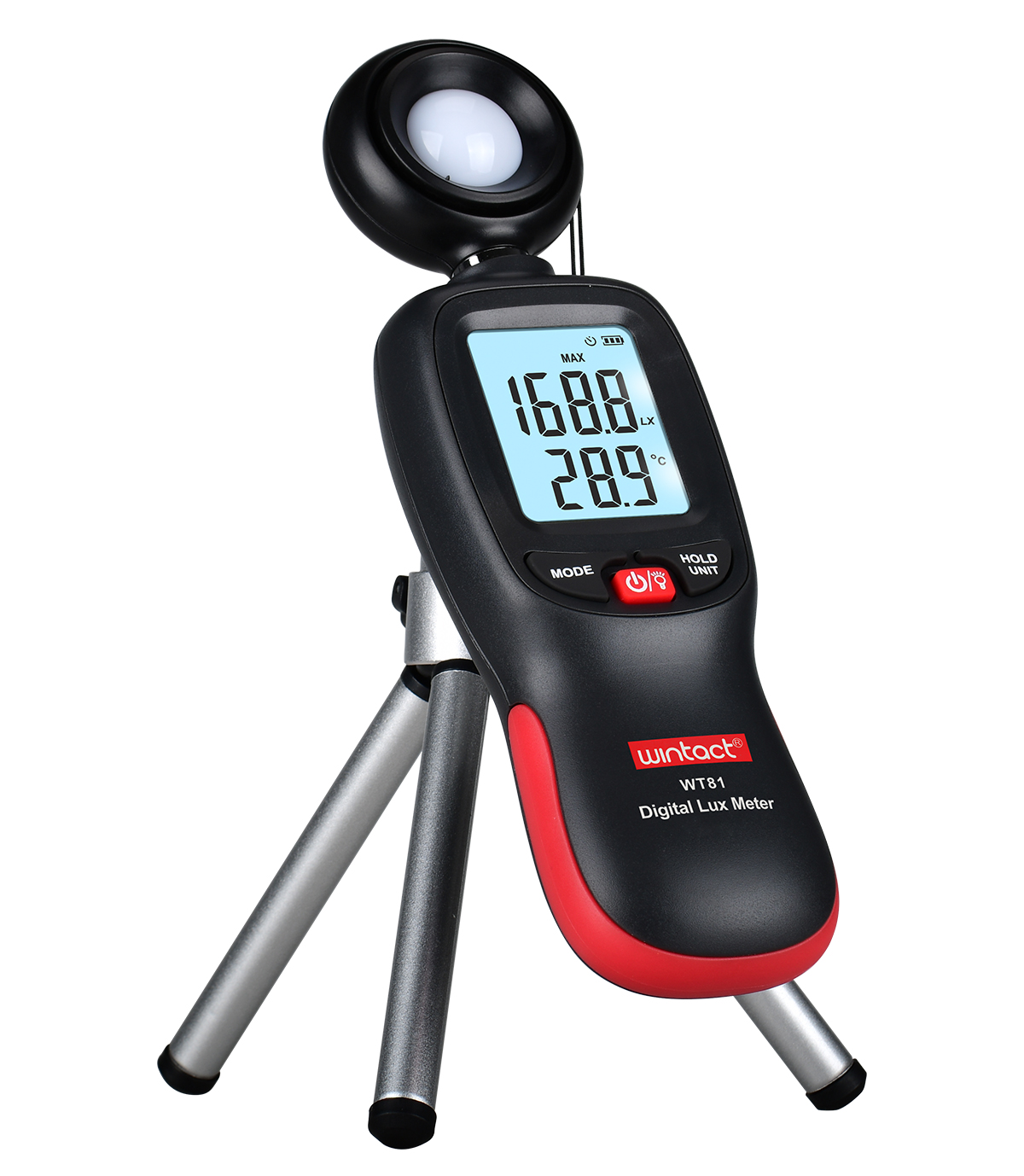

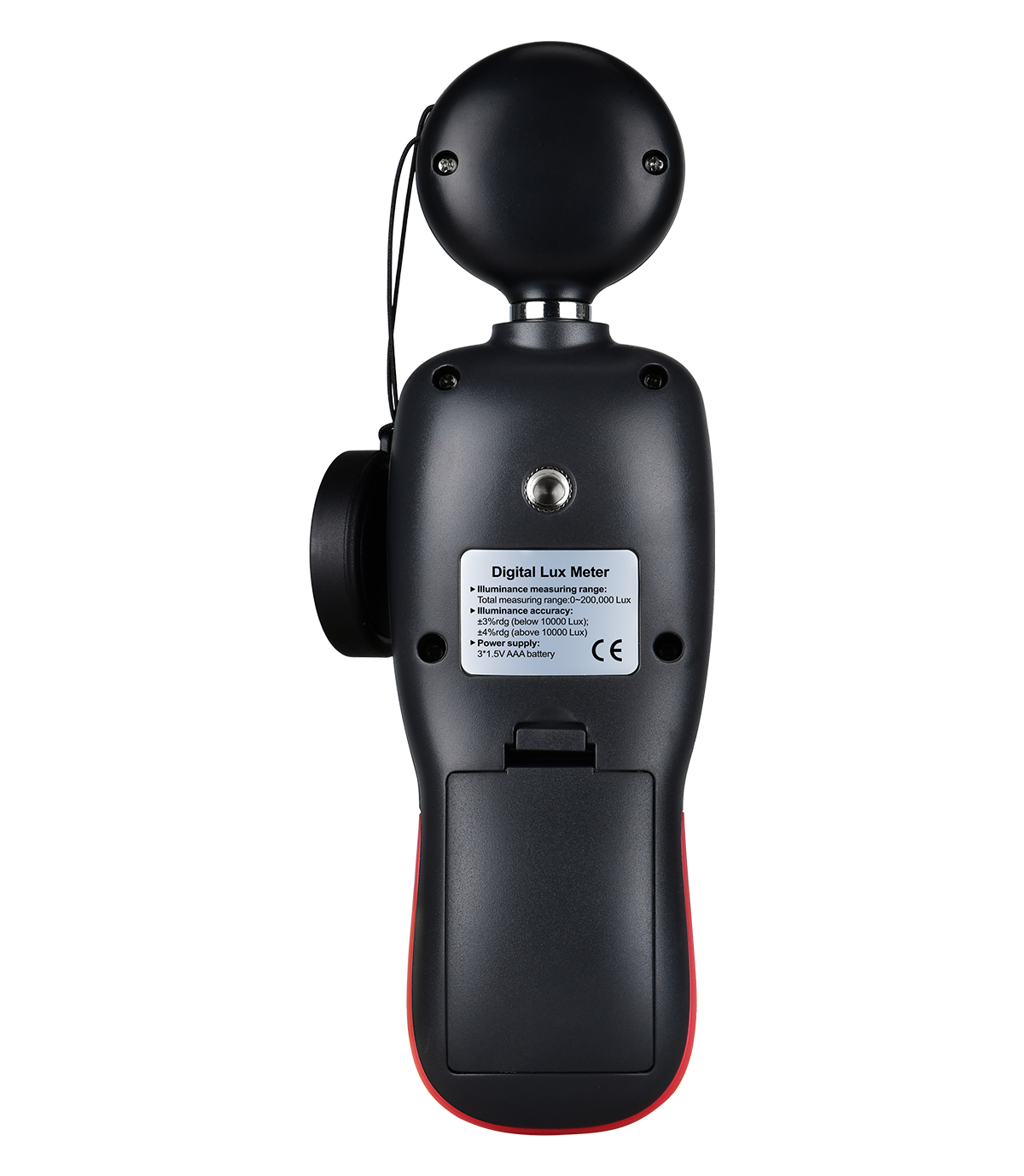

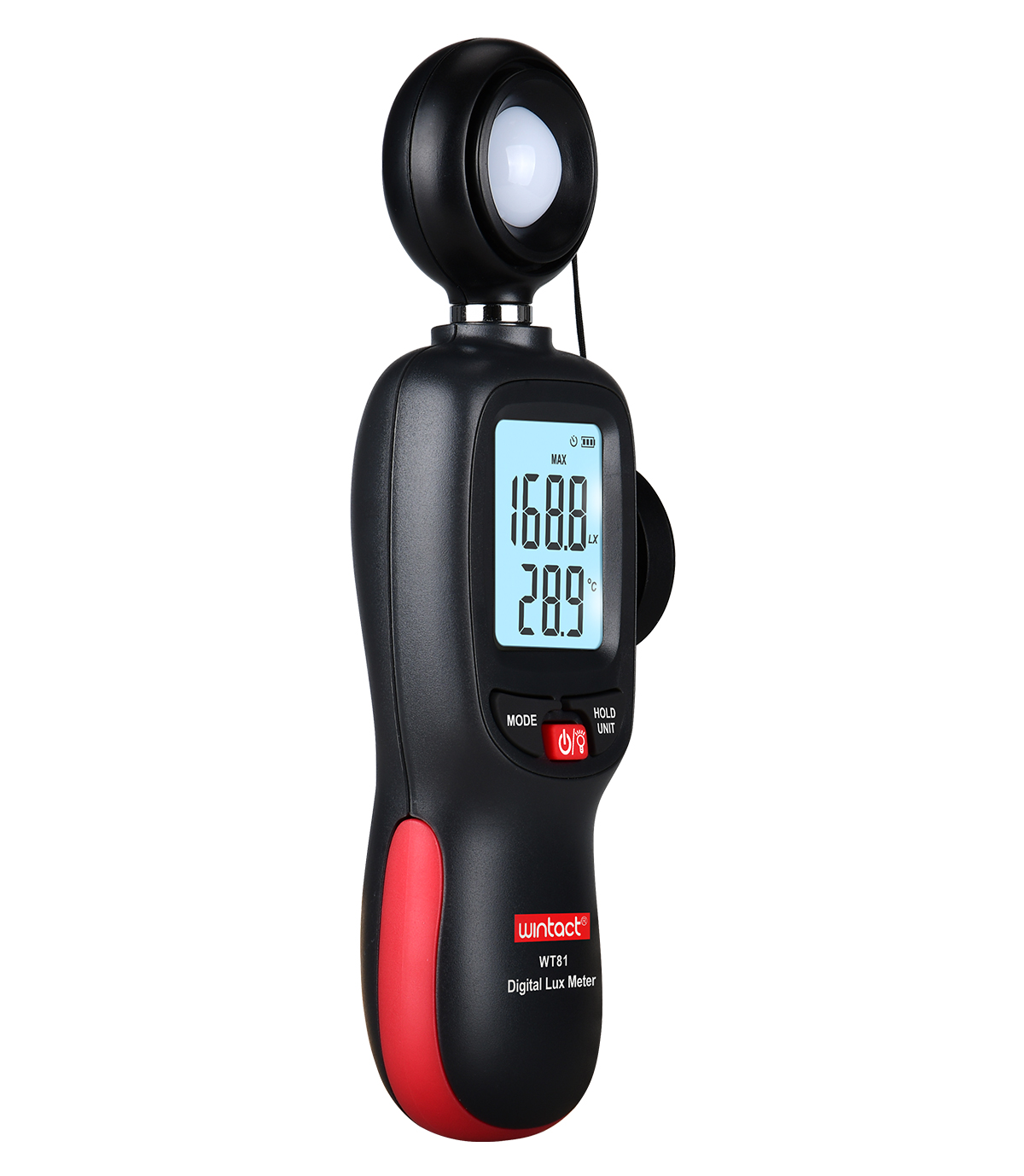

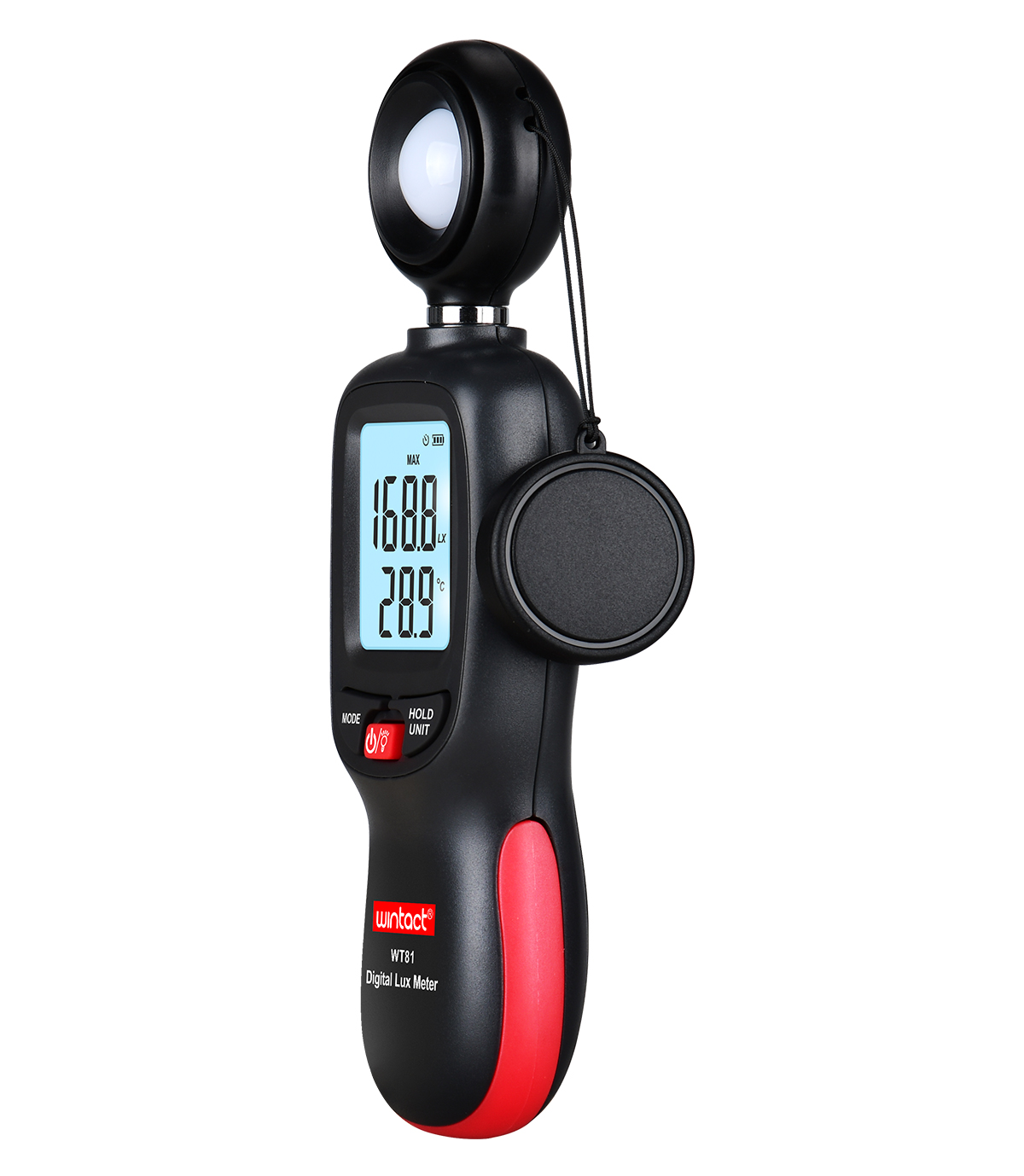

Digital Lux Meter possesses the following features:
Measuring function
|
Illumination and temperature, difference value,
max value, min value of illumination
|
|
Main parts of photometer
head
|
Photodiode+cosines corrector+correction filter
|
|
Temperature probe
|
NTC thermistor
|
|
Illuminance
measuring range
|
Total measuring range:0~200,000 Lux,into
four ranges
|
|
×1:0 ~ 199.9 Lux
|
||
×10:200 ~ 1999.9Lux
|
||
×100:2000 ~ 19999.9Lux
|
||
×1000:20000 ~200000Lux
|
||
Temperature
measuring range
|
-9.9℃ ~ 49.9℃
|
|
Illuminance
accuracy
|
±3%rdg (below 10000 Lux);
|
|
±4%rdg (above 10000 Lux)
|
||
Temperature accuracy
|
±1.0 ℃
|
|
Units of illuminance
and temperature
|
Four combinations of units are available.
|
|
Lux/℃
|
||
Lux/℉
|
||
FC/℃
|
||
FC/℉
|
||
Storage of
illumination data
|
Automatic
storage
|
Max number of data groups is 1000, and storage cycle is set by APP. |
|
Manual
storage
|
Max number of data groups is 67,
and whether to store data is
deceived by manual operation.
|
Operating temperature/
humidity
|
0 ~ 40℃,10 ~ 90%RH
|
|
Storage temperature/
humidity
|
-10 ~ 50℃,10 ~ 90%RH
|
|
LCD screen update
|
2 times/s
|
|
Power source
|
3* 1.5V AAA batteries
|
|
Battery life
|
About 200 hours(consecutive working time
without turning on Bluetooth and backlight)
|
