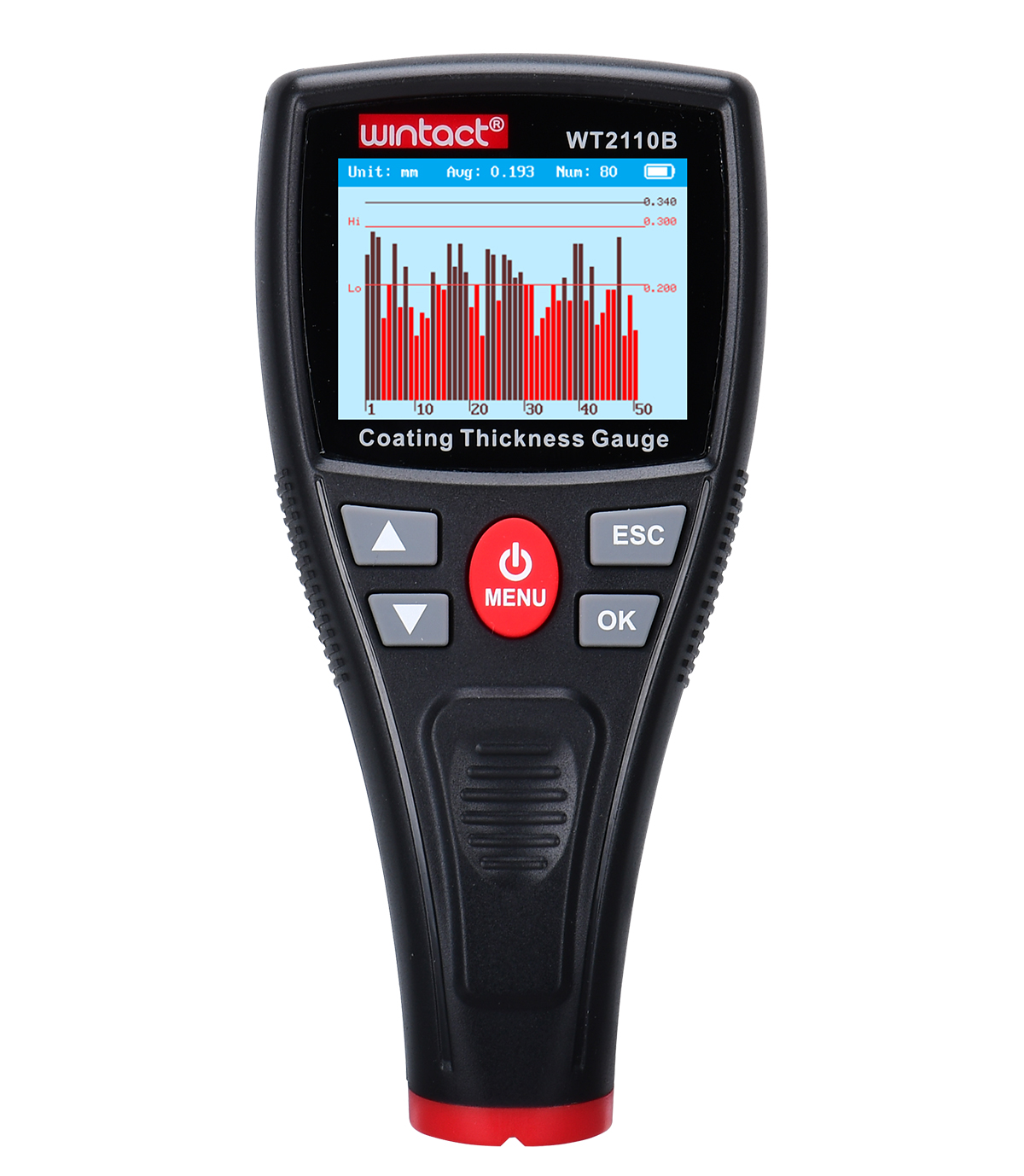

• Coating Thickness Gauge possesses the following features:




  1.Menu operation and color-screen HD display.
  2.Thickness measurement of non-magnetic coating on magnetic metal
  substrate surface and non-metallic coating on nonmagnetic metal
  substrate .
  3.Two measurement methods: single measurement, continuous
  measurement.
  4.Three calibration modes: basic, offset, zero calibration.
  5.Metric/imperial unit and storage function.
  6.Screen rotation, charge protection, multi-interface displays,screen
  brightness selection.
  7.Automatic shutdown.
  8.Bluetooth function(go with corresponding APP).
  9.USB transport data(operating with PC software).
  10.USB rechargeable.

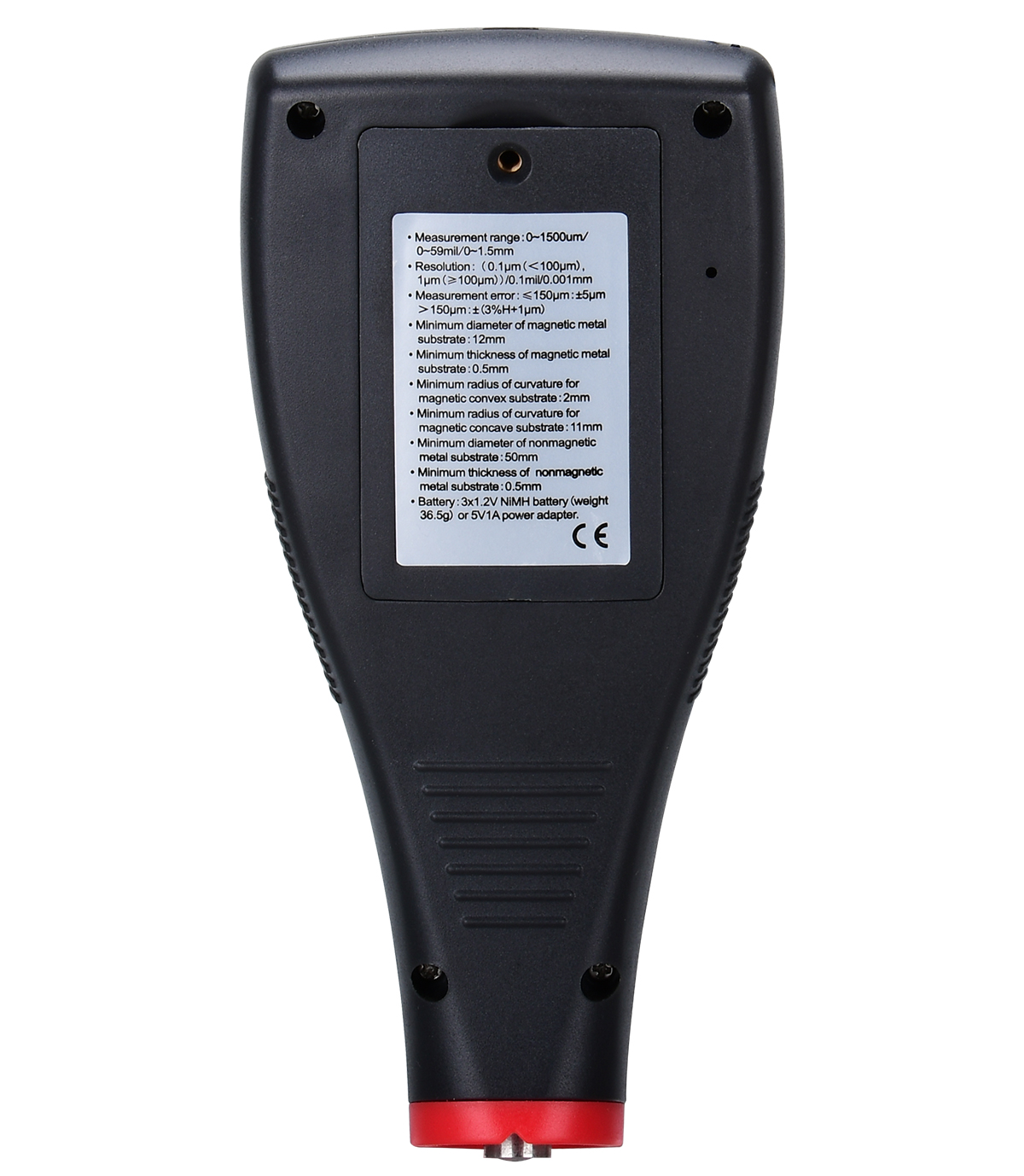

• Measurement range	0~1500μm/0~59mil/0~1.5mm
  Resolution	( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
  Measurement error	≤150μm , ±5μm
  	>150μm , ±(3%H+1μm)
  Minimum diameter of magnetic metal substrate	12mm
  Minimum thickness of magnetic metal substrate	0.5mm
  Minimum radius of curvature for magnetic convex substrate	2mm
  Minimum radius of curvature for magnetic concave substrate	11mm
  Minimum diameter of non- magnetic metal substrate	50mm
  Minimum thickness of non- magnetic metal substrate	0.5mm
  Battery	3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
  Size	70.30*38.6*149.59mm
  Weight	136.9(including battery)



• Please refer to the manual for details

• Calibration sheet*6
  Aluminum base*1
  Iron base*1
  USB cable*1
  Manual *1
  Host*1
  PP box*1
  Color box*1
  Ni-MH rechargeable battery*3
  Plug*1

•
•
