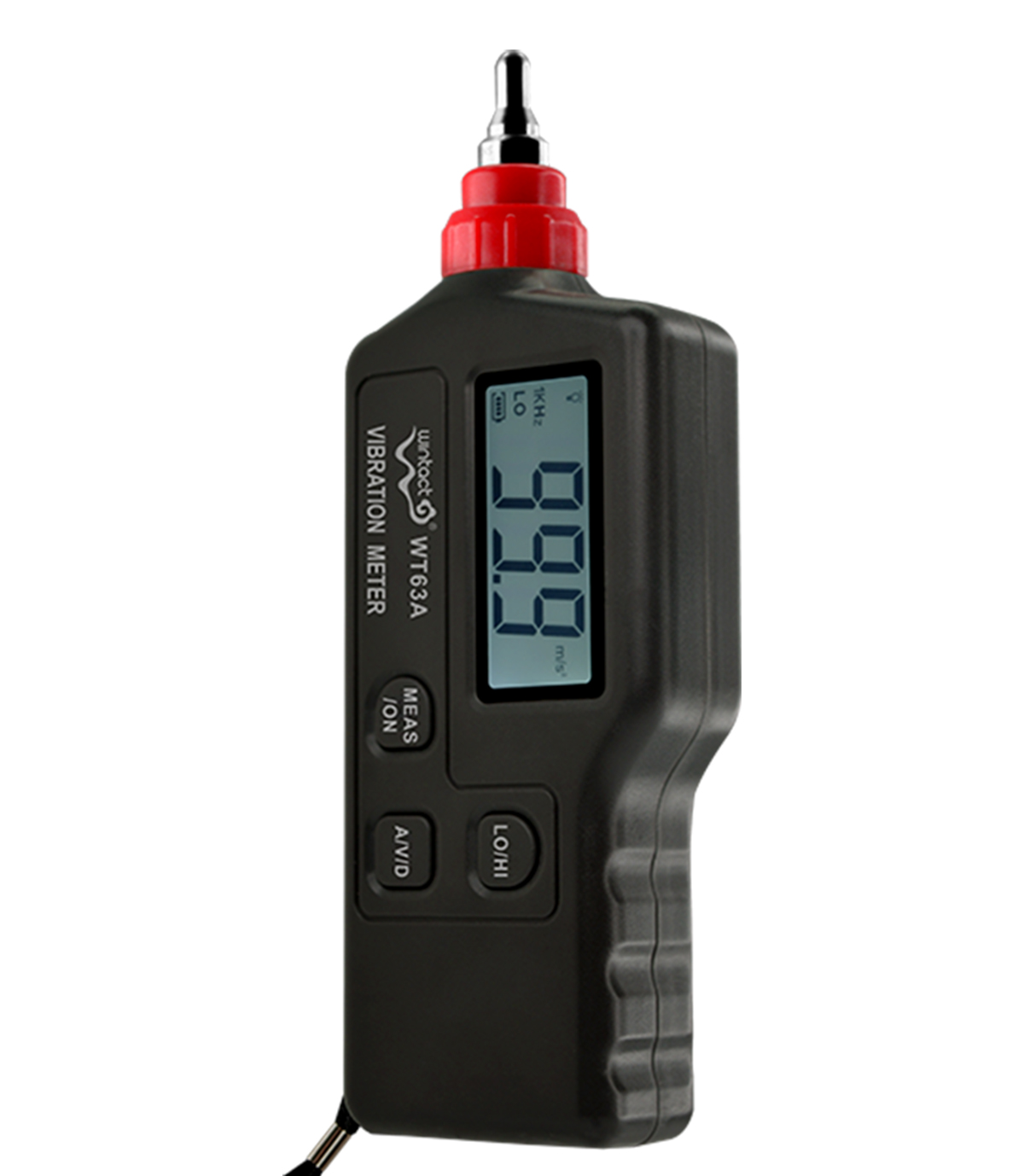

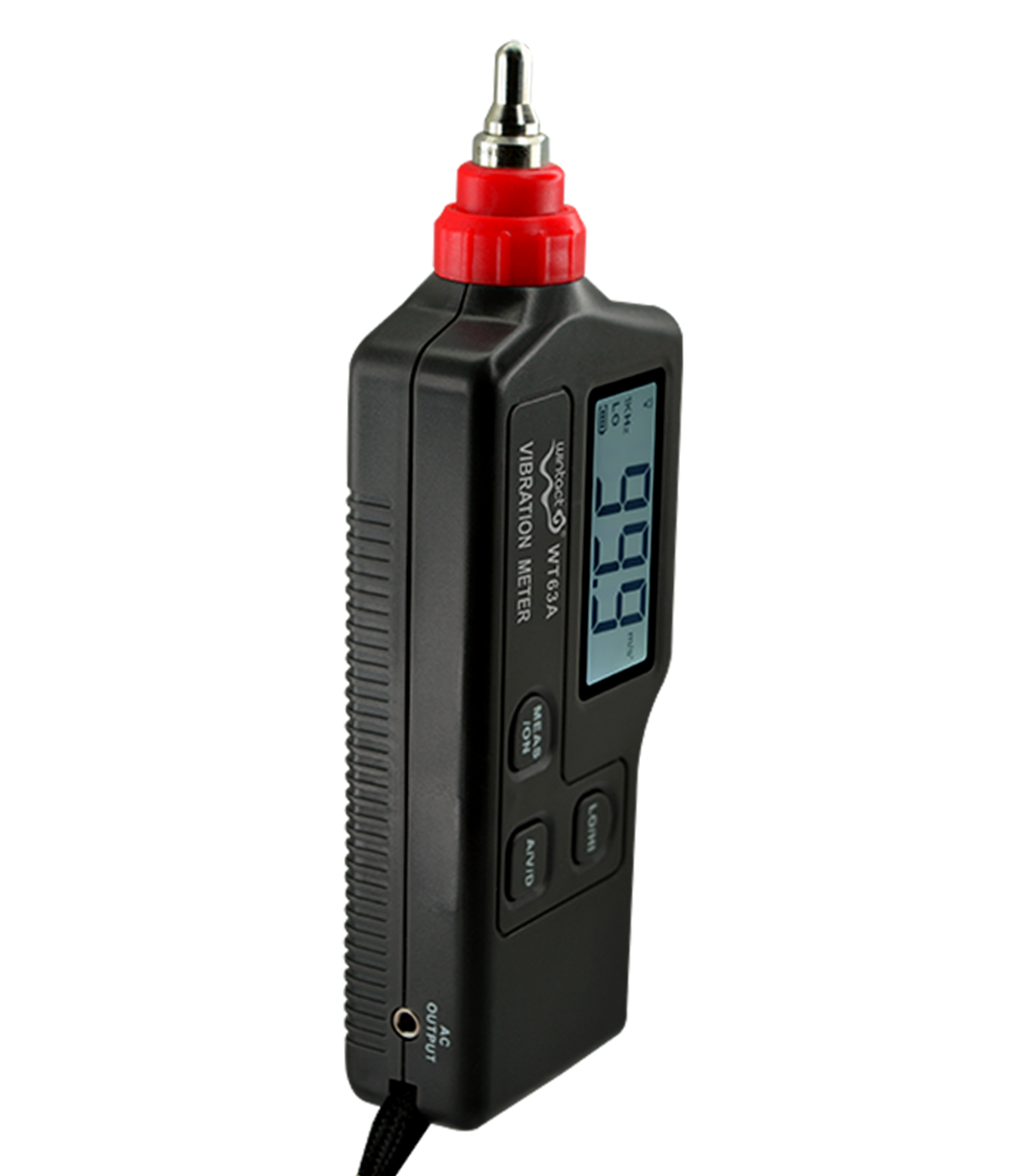

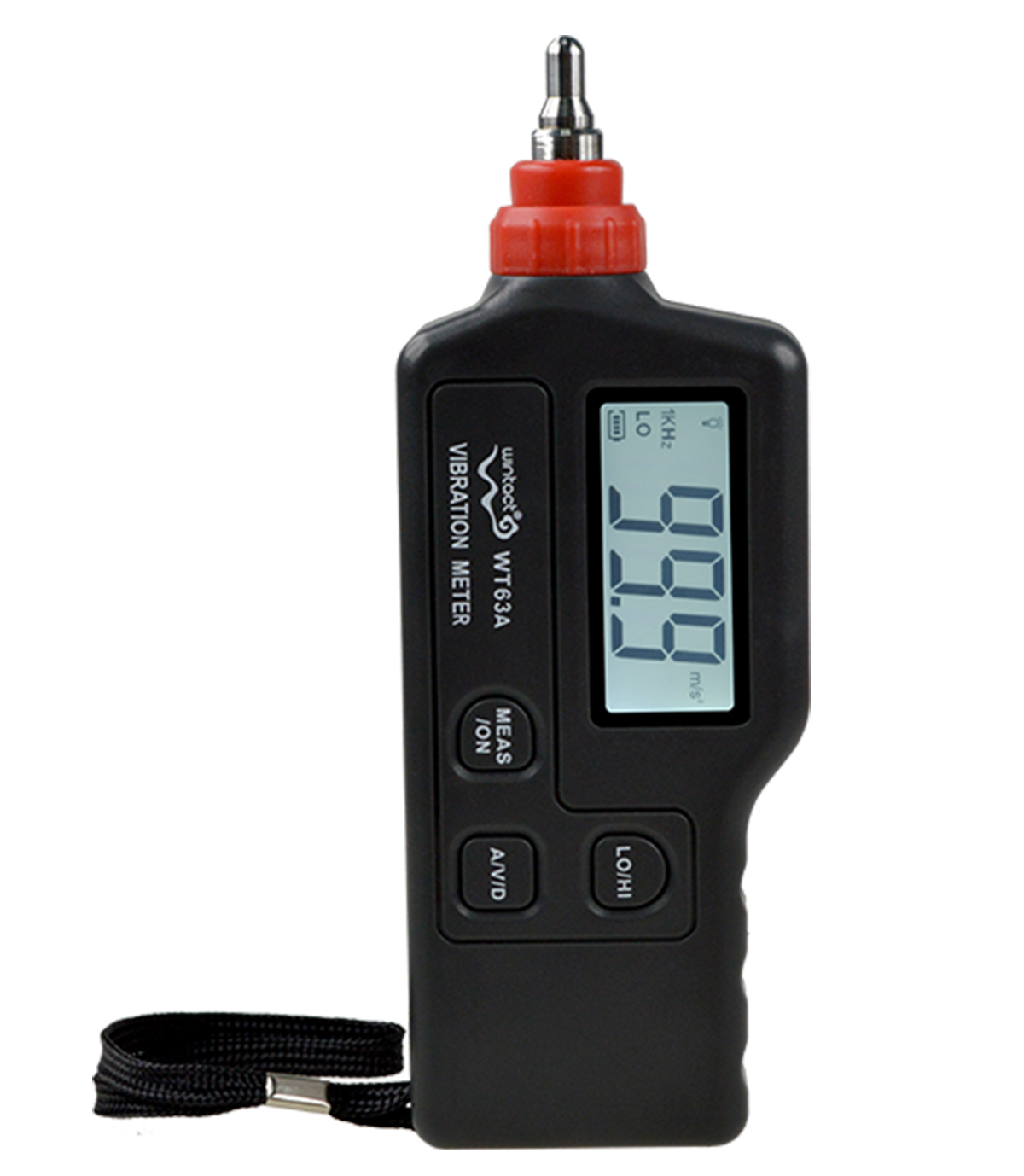

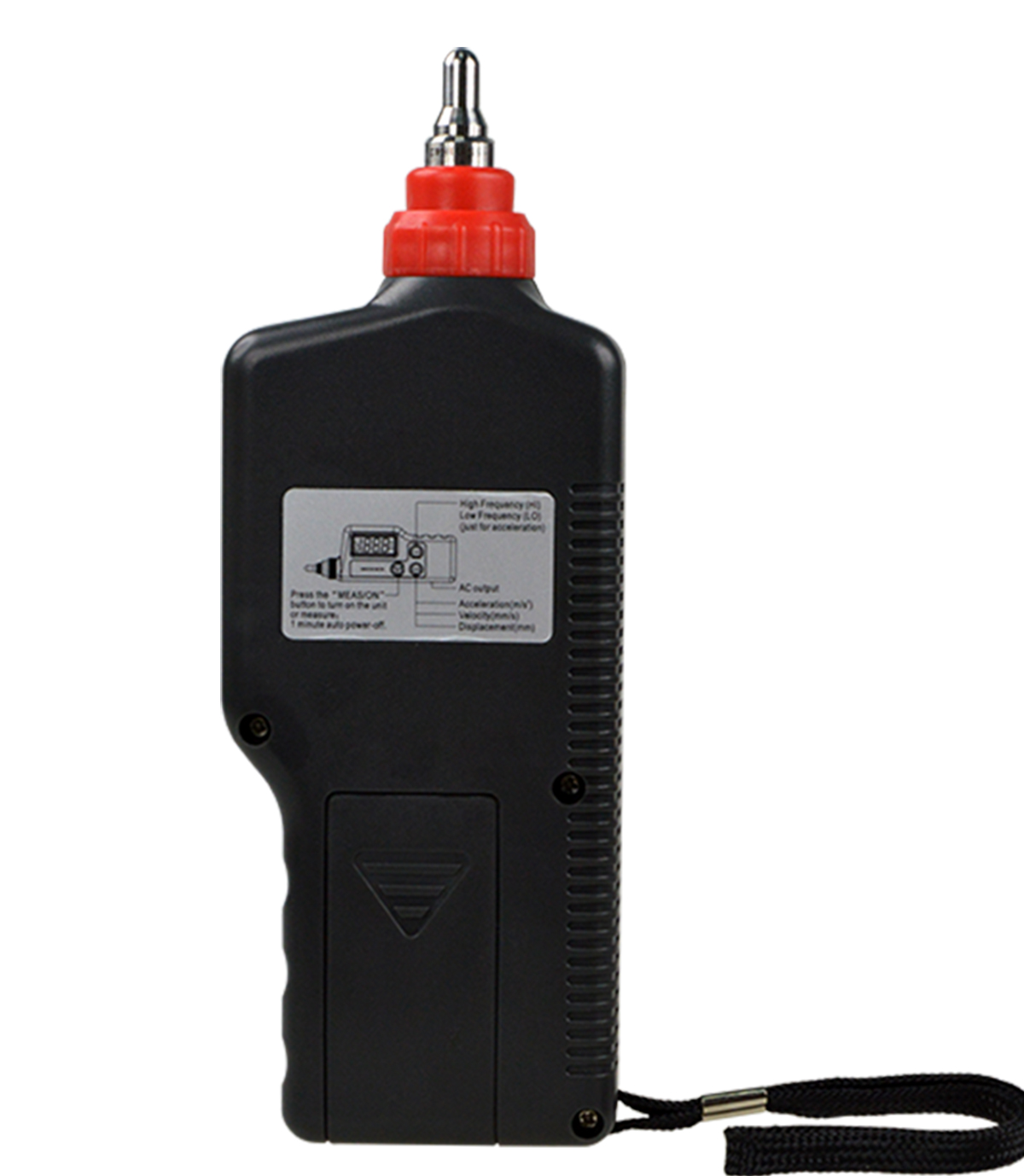

• Vibration Meter possesses the following features:




  1.Simple to use, the structure is compact, portable for

  carrying along with measurement.
  2.Visually display measurement value and state.
  3.Acceleration, velocity and displacement measurement.
  4.Different vibration frequency selection.
  5.High sensitivity probe for accurate measurement Pro-
  vides long and short probe head ,each one is suitable
  for different situation measurement.

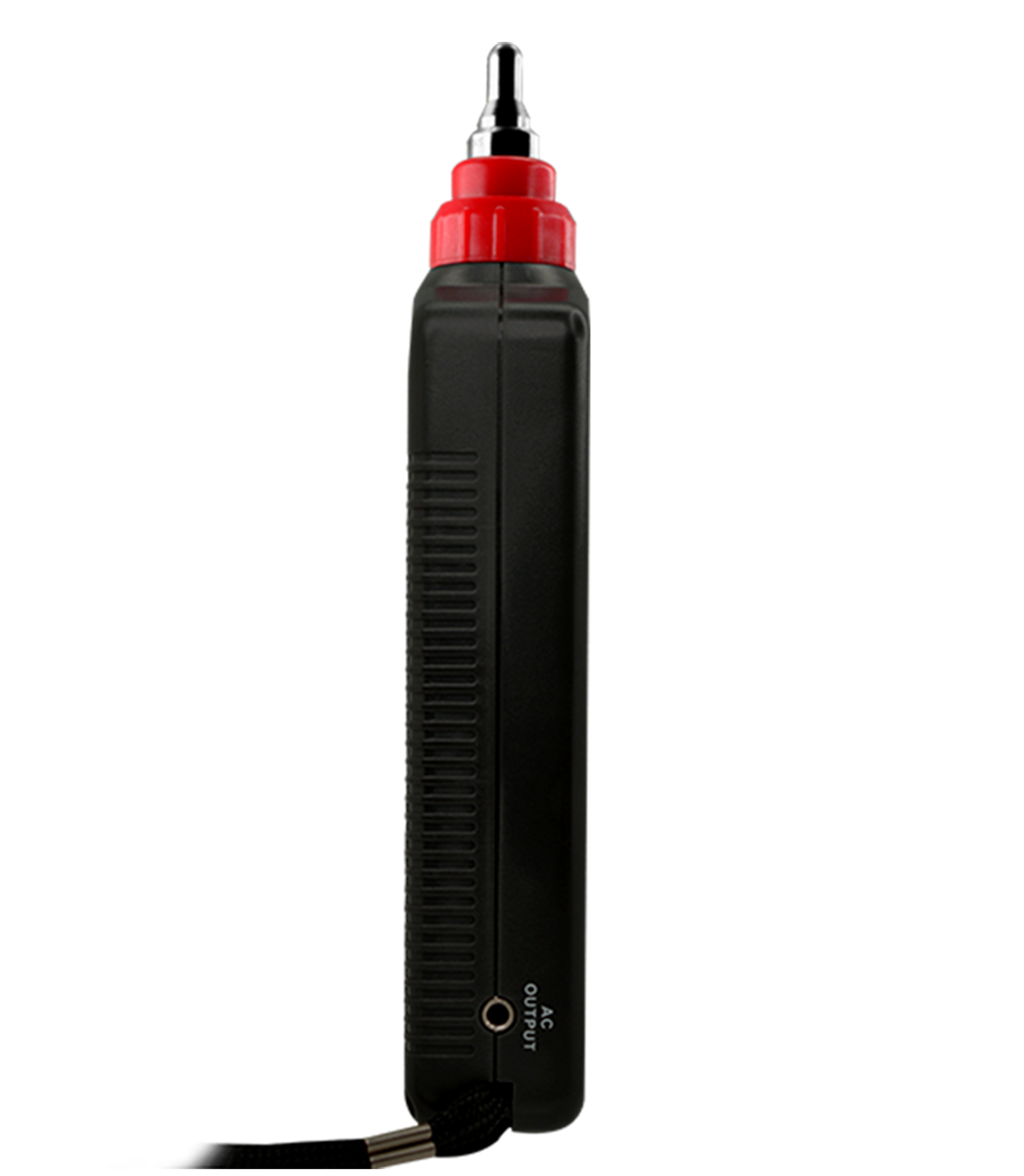

  6.Equipped with AC signal output interface.
  7.Low power indication.
  8.Auto power-off.
  9.LCD backlight.




• Technical parameter	Technical specification
  Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
  Measurement range of acceleration	0.1~199.9m/s² peak
  Measurement range of velocity	0.1~199.9mm/s rms
  Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by 2 acceleration199.9m/s²
  Measurement accuracy	±5%±2digits
  Measurement frequency range of acceleration	10Hz～1KHz (LO) 1KHz～15KHz (HI)
  Measurement frequency range of velocity	10Hz～1KHz (LO)
  Measurement frequency range of displacement	10Hz～1KHz (LO)
  Displays update cycle	1 second
  LCD display	3 1/2 digits display
  Single output	AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected
  Power supply	9V Alkaline battery
  Static current	≤20μA
  Operating current	≤25mA
  Battery life	20 hours continuous use
  Auto power-off	Turns off automatically in 60 seconds
  LCD backlight	7 seconds
  Operating temperature range	0~40℃
  Operating humidity range	30~90%RH
  Low battery indication	6.9V±0.2V
  Dimensions	67x30x183mm
  Weight	182g ( including battery)



• Please refer to the manual for details
• Vibration meter*1
  9V Alkaline battery*1

  User's manual*1




  Long probe*1

  Short probe (Equiped on the main unit)*1




  PP packing box*1







•
•
